10kVA/10kW online UPS supplied with an external battery bank containing twenty CSB 12V/9Ah batteries. The rack/tower system supports demanding server and networking loads.
- Model: Clippers RT 10KL / PPF10L1201
- Power: 10000 VA / 10000 W
- Topology: Online double conversion
- Output power factor: 1.0
- Output voltage: 220 / 230 / 240 V AC
- Waveform: Pure sine wave
- Transfer to battery: 0 ms
- Input voltage: 110–300 V AC at 50% load; 176–300 V AC at full load
- Charging current: 4 A
- Interface: USB, RS-232, optional SNMP card slot, EPO
- Connection: Terminal block; professional installation

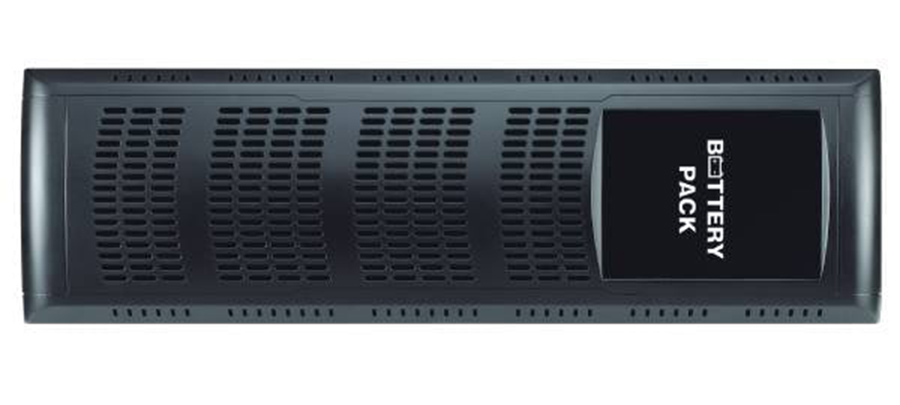

- Bundle: Clippers RT 10KL + external BB-240/09RT (MPF0005900GP) battery bank
- Batteries: 20 × CSB 12 V / 9 Ah; 240 V / 9 Ah
- Form factor: Rack / Tower; UPS: 2U, battery bank: 3U
- Dimensions (W × H × D): UPS: 438 × 88 × 610 mm; battery bank: 438 × 132 × 580 mm
- Weight: UPS: 20 kg; battery bank: 65 kg
- Warranty: UPS: 2 years; battery: 1 year
