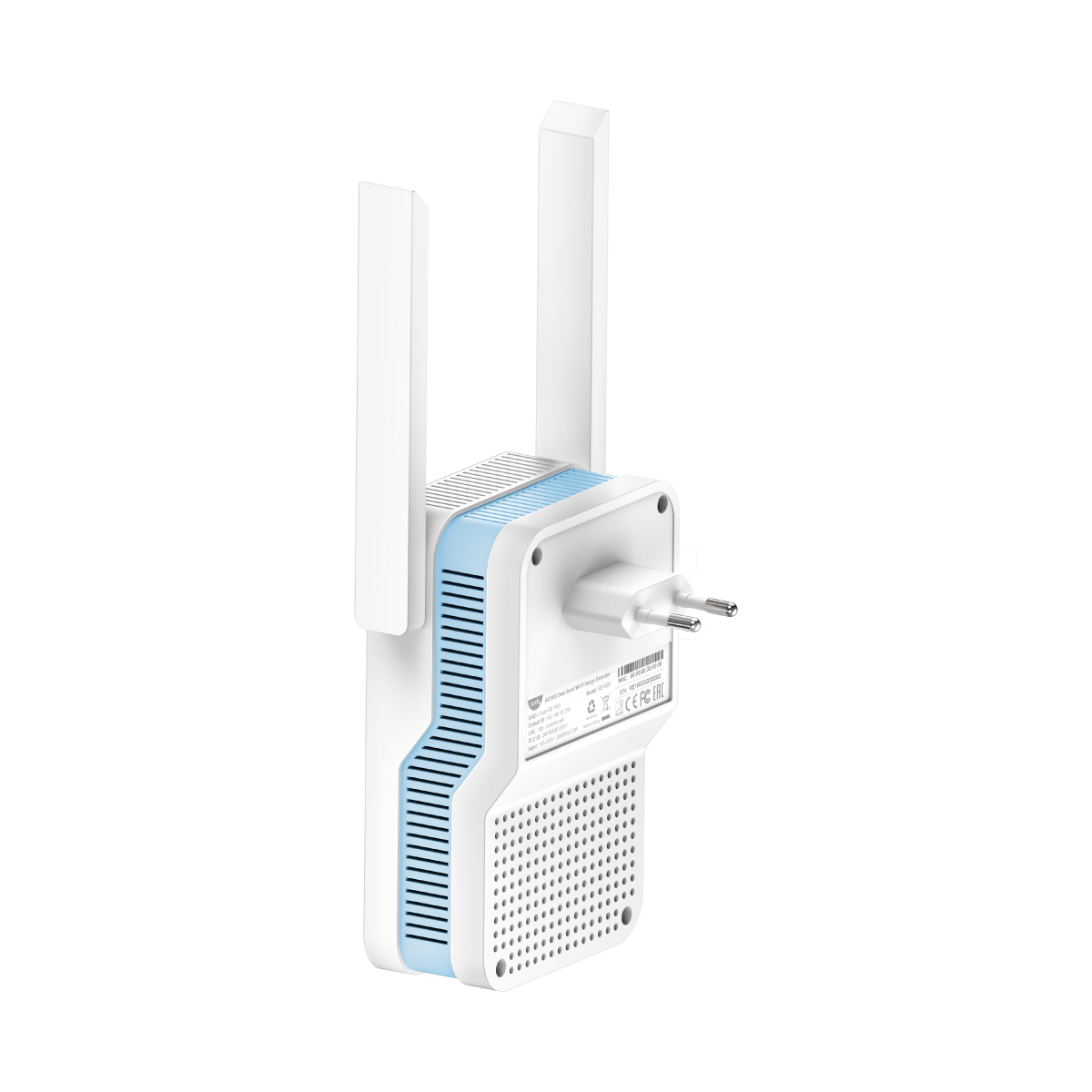

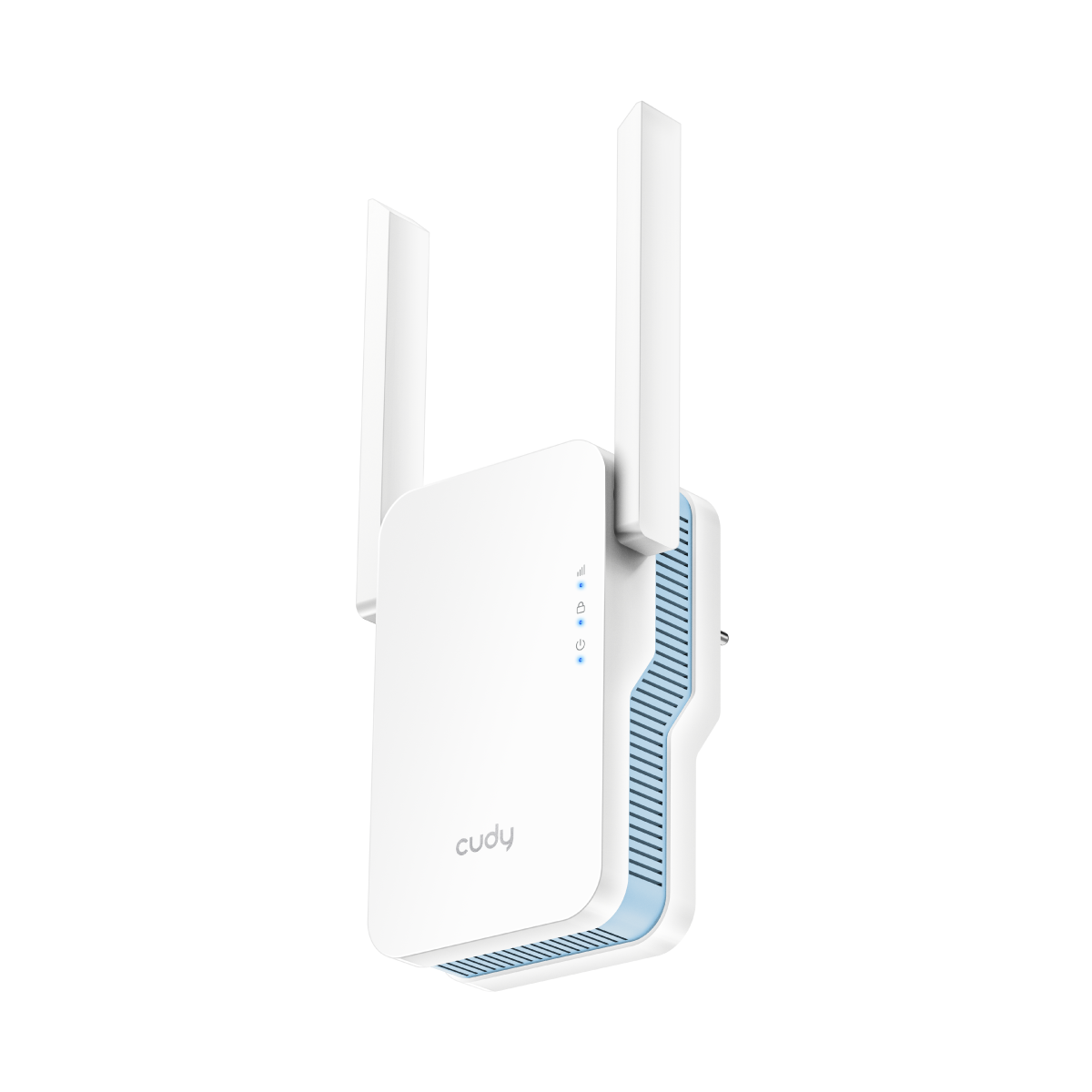

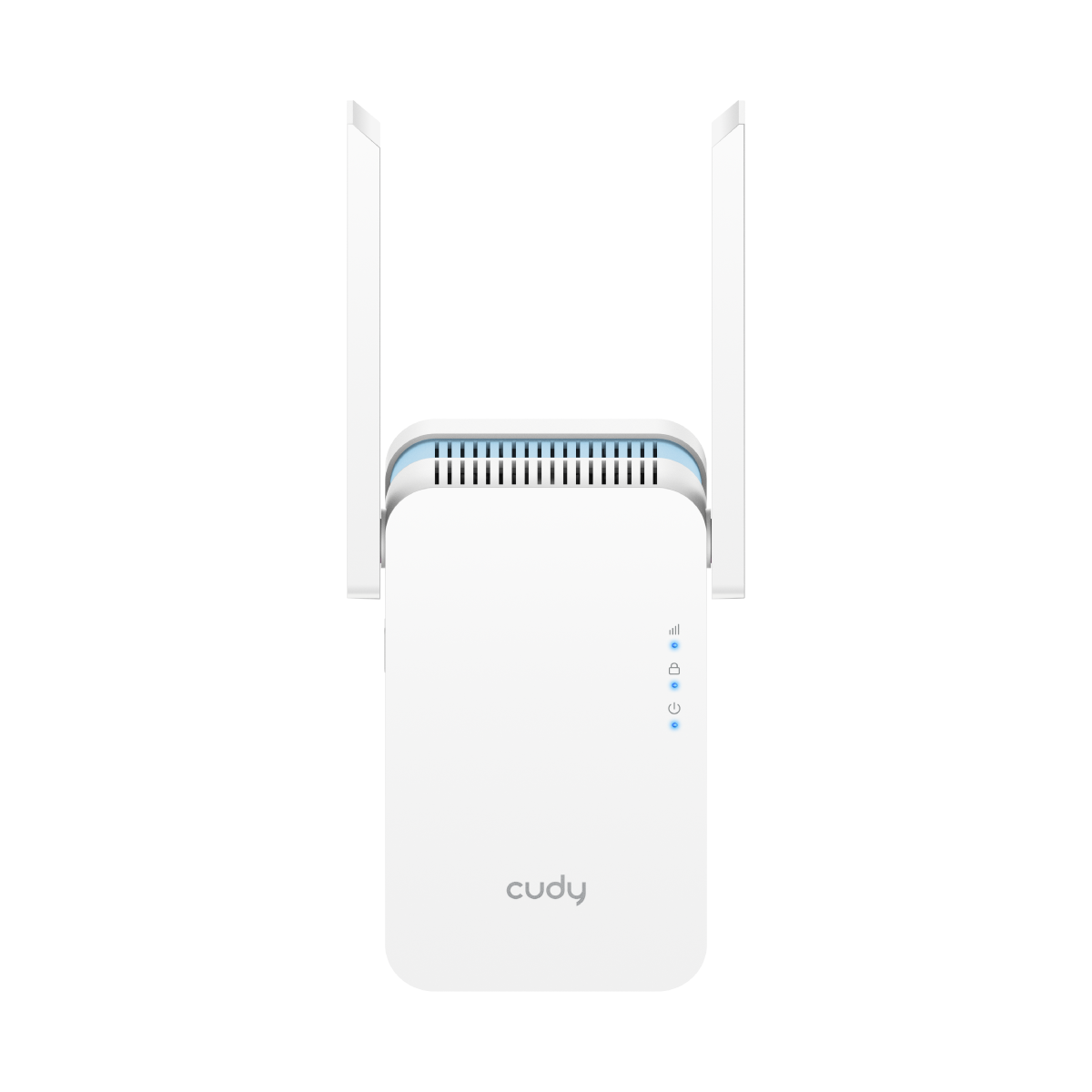

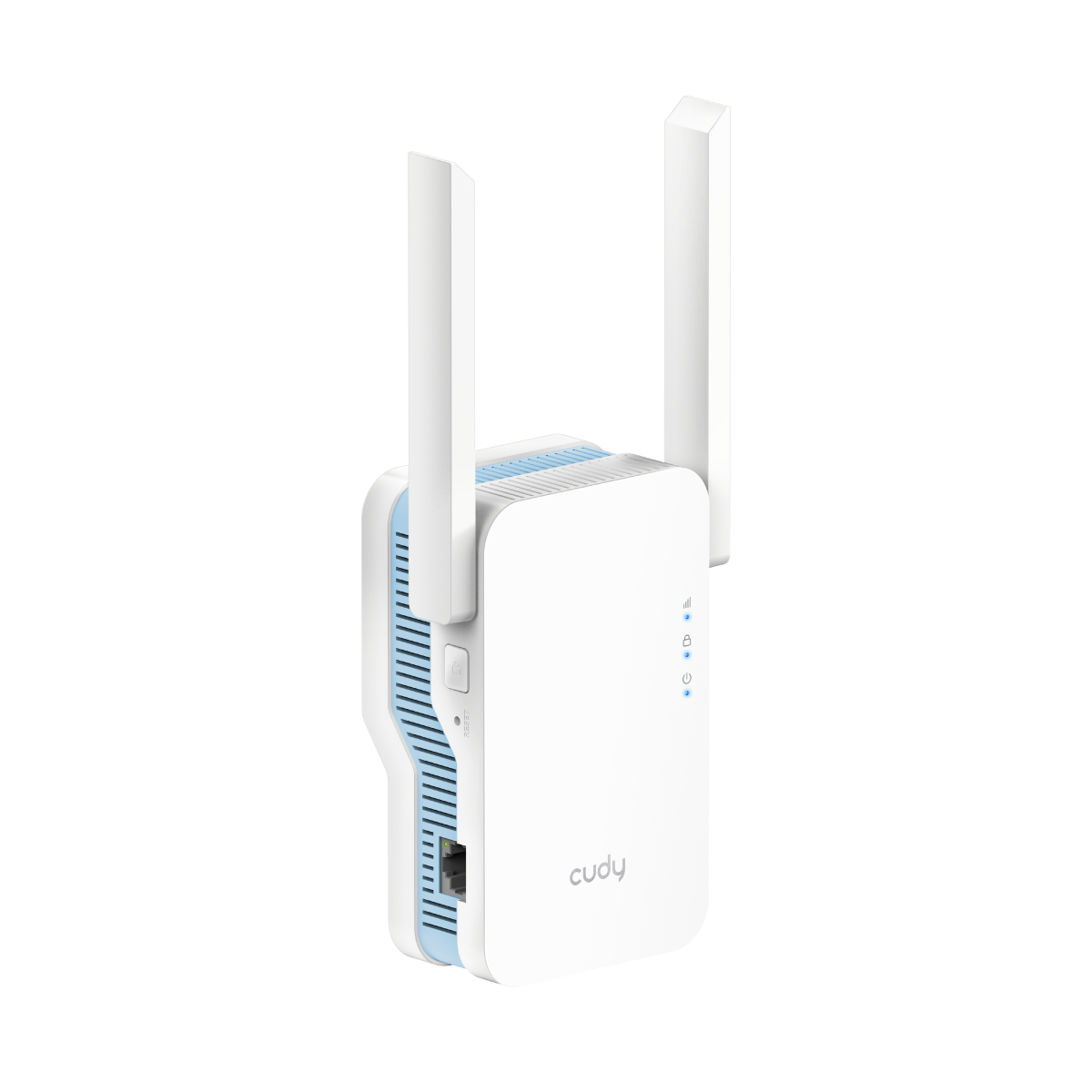

Cudy RE1200 Wi-Fi 5 Range Extender

Dual-band AC1200 Wi-Fi 5 extender with one 10/100 Mbps Ethernet port. Plugs directly into a wall outlet and supports extender or access-point operation.

Key specifications

• Model: Cudy RE1200
• Ethernet port count: 1
• Ethernet port speed: 10/100 Mbps
• Network ports: 1× LAN / access-point uplink
• Wi-Fi standard: Wi-Fi 5
• Wi-Fi bands: 2.4 GHz / 5 GHz
• Maximum Wi-Fi PHY rates: 2.4 GHz: 300; 5 GHz: 867 Mbps (PHY)
• Power: 100–240 V AC
• Management: Web management; Cudy Mesh satellite
• Operating modes: Access point / Range extender
• Mounting: Directly into a wall socket
• Body dimensions: 129.6×80×48.6 mm
• Wi-Fi antennas: 2× fixed external
• Processor: 580 MHz, MIPS24KEC
• Memory: RAM: 64 MB DDR2; flash: 8 MB NOR

Wi-Fi rates are theoretical PHY maxima; actual throughput depends on devices, environment and connection conditions.
