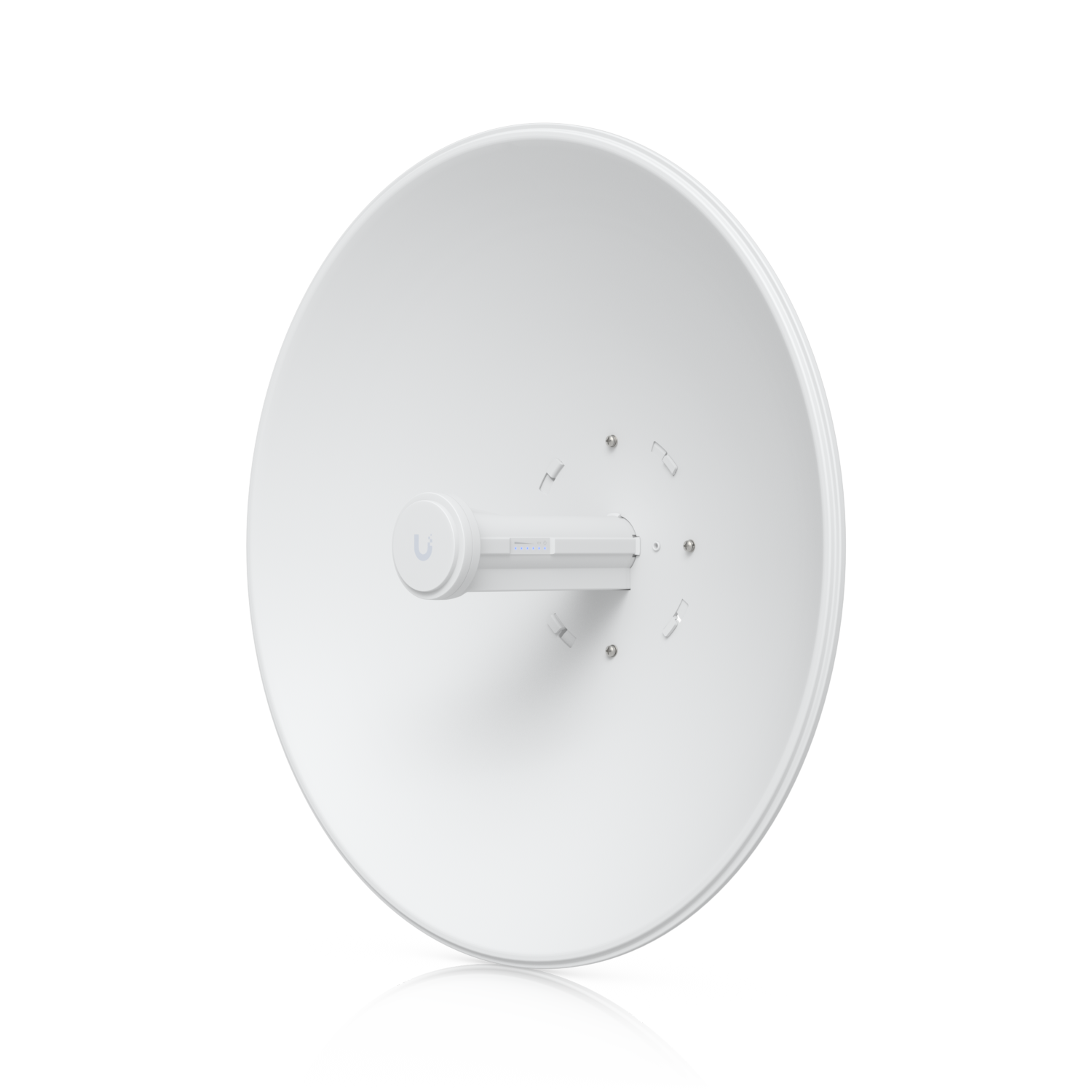

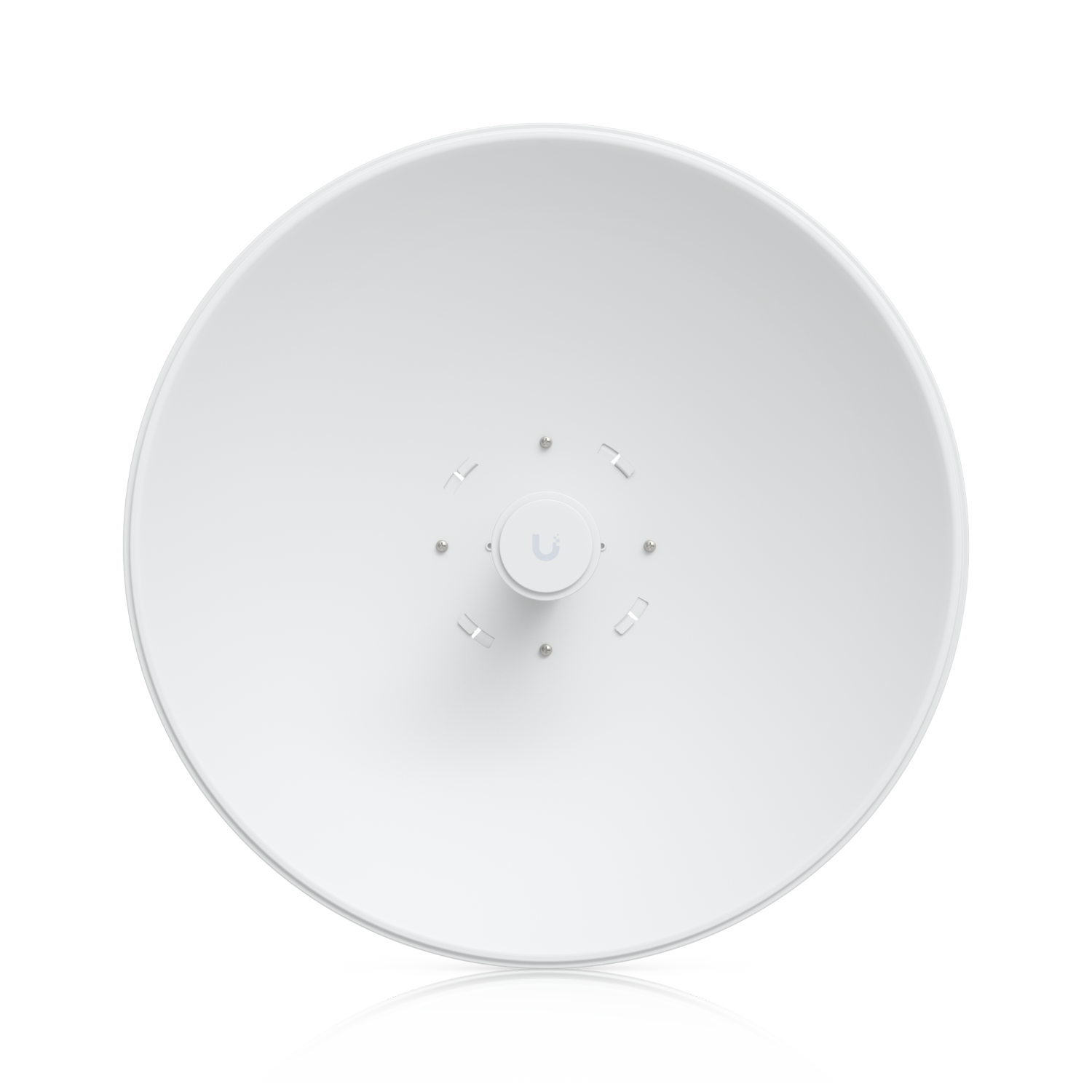

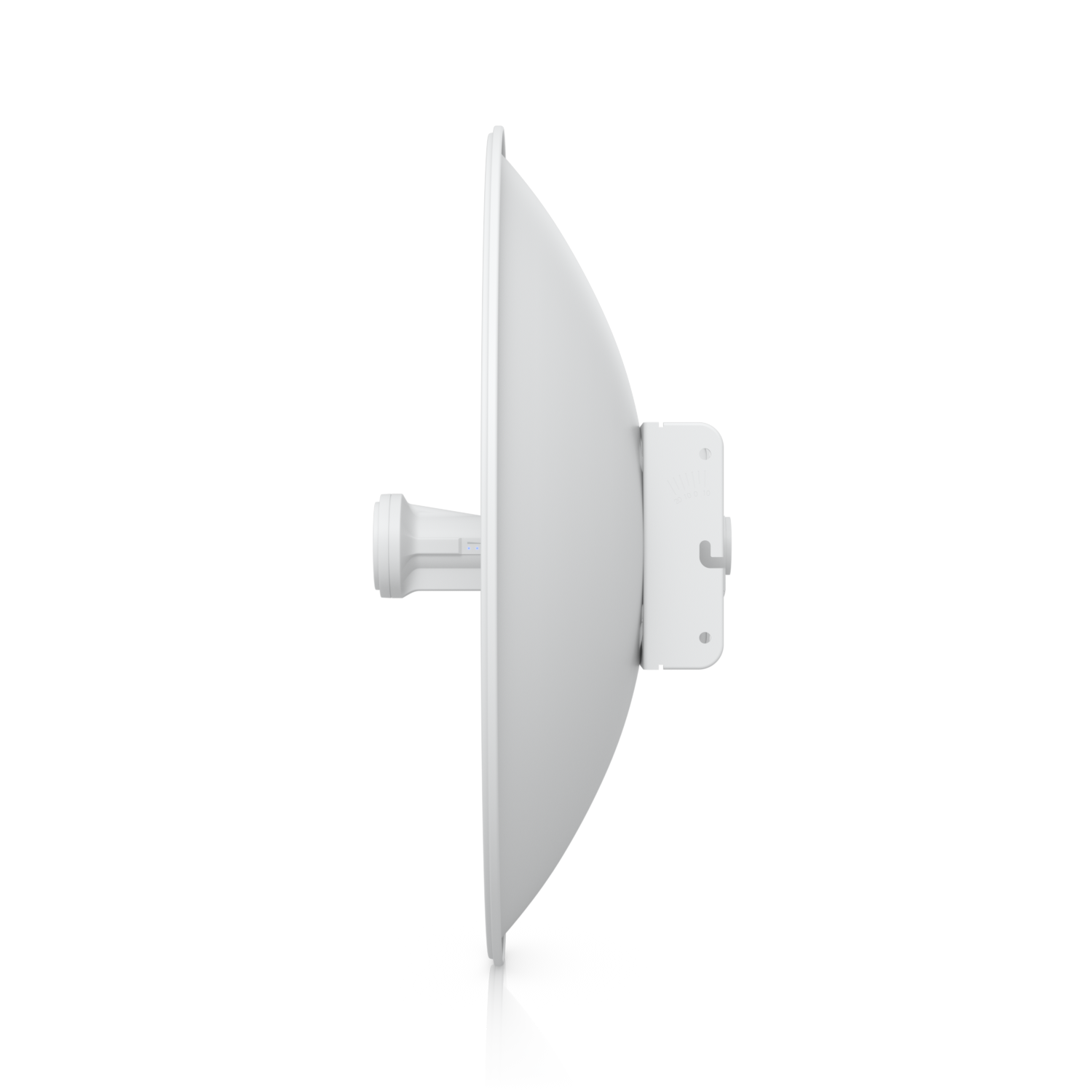

Ubiquiti PowerBeam PBE-5AC-500 airMAX ac Wireless Bridge

5 GHz airMAX ac wireless bridge with a 27 dBi directional antenna, Gigabit Ethernet and 24V passive PoE. Supports access-point and station modes.

Key specifications

• Model: PBE-5AC-500
• Device type: Wireless bridge / CPE
• Technology: airMAX ac
• Frequency bands: 5 GHz
• Antenna gain: 27 dBi
• Network ports: 1 × GbE RJ45
• Network port count: 1
• Port speed: 1 Gbps
• PoE: 24V passive PoE input
• Power method: 24V passive PoE, 20–27V DC input range
• Power adapter: 24V, 0.5A Gigabit PoE adapter included
• Maximum power consumption: 8.5 W
• Operating modes: Access point / station

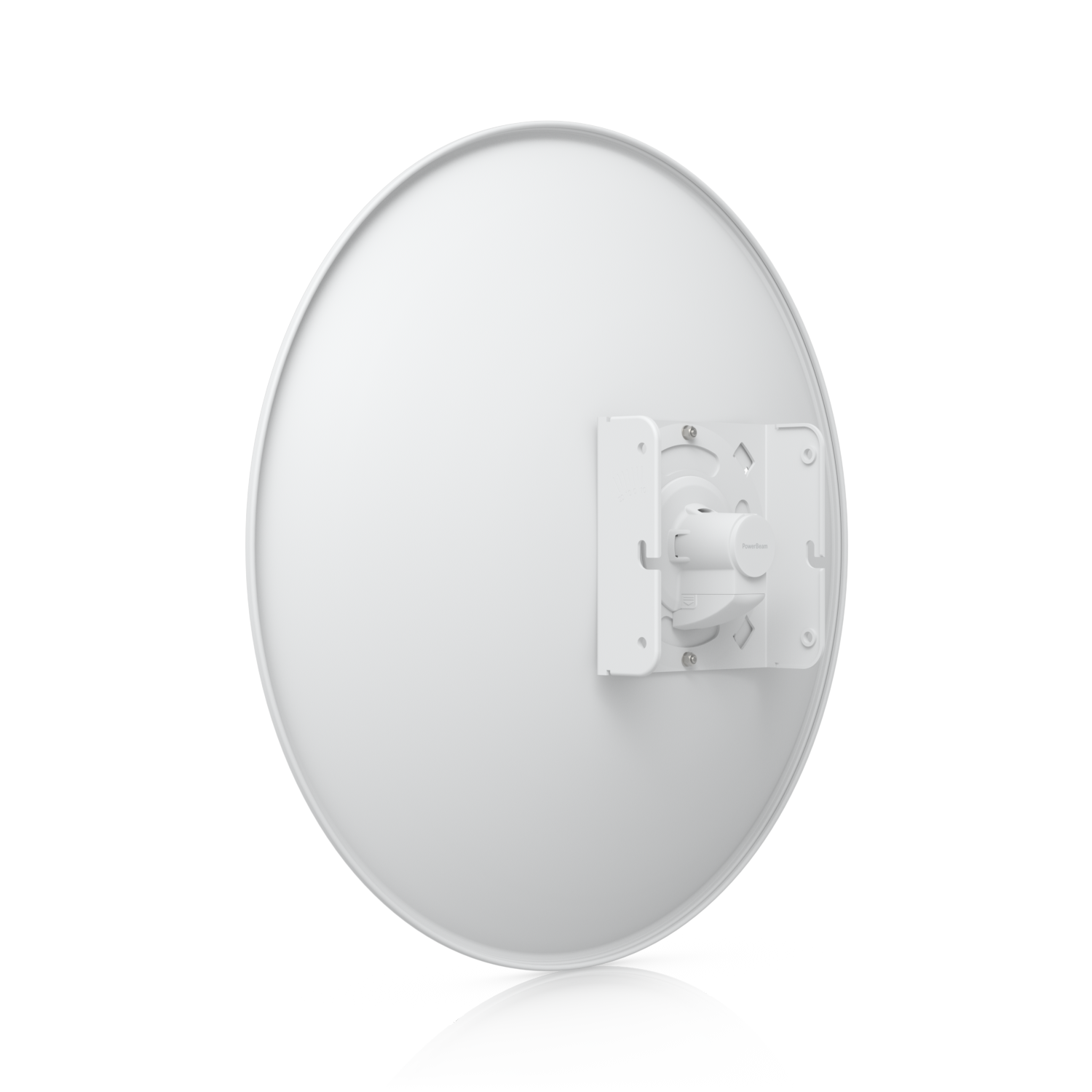

• Mounting: Pole mount, bracket included
• Dimensions: Without radome: 520 × 520 × 308 mm; with radome: 525 × 525 × 315 mm
• Weight: Without radome: 2.35 kg; with radome: 3.2 kg
• Operating temperature: −40…+70 °C
• Warranty: 12 months

Permitted radio frequencies depend on regional regulations. Dimensions with and without the radome are listed separately as specified by the manufacturer.

Official Ubiquiti specifications
