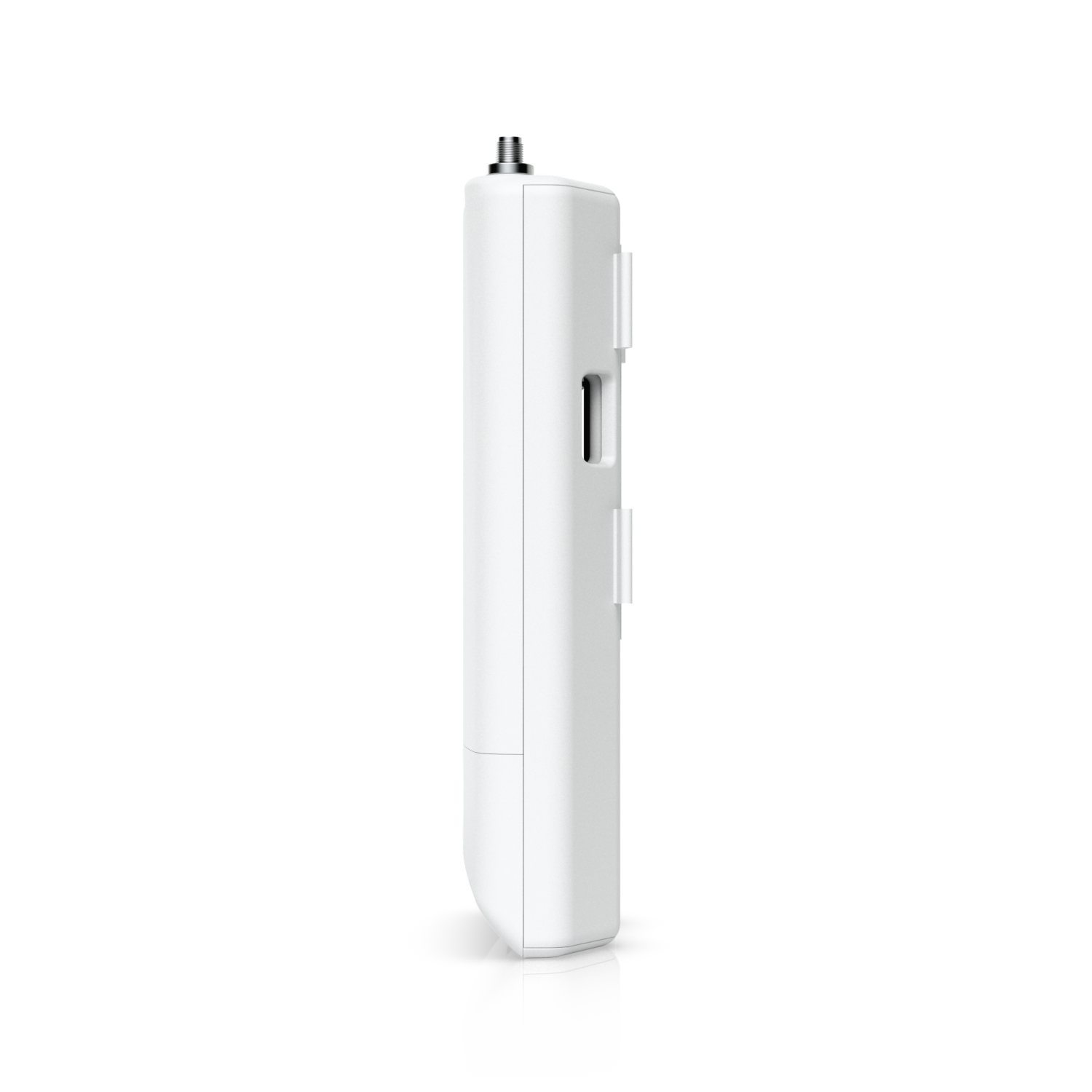

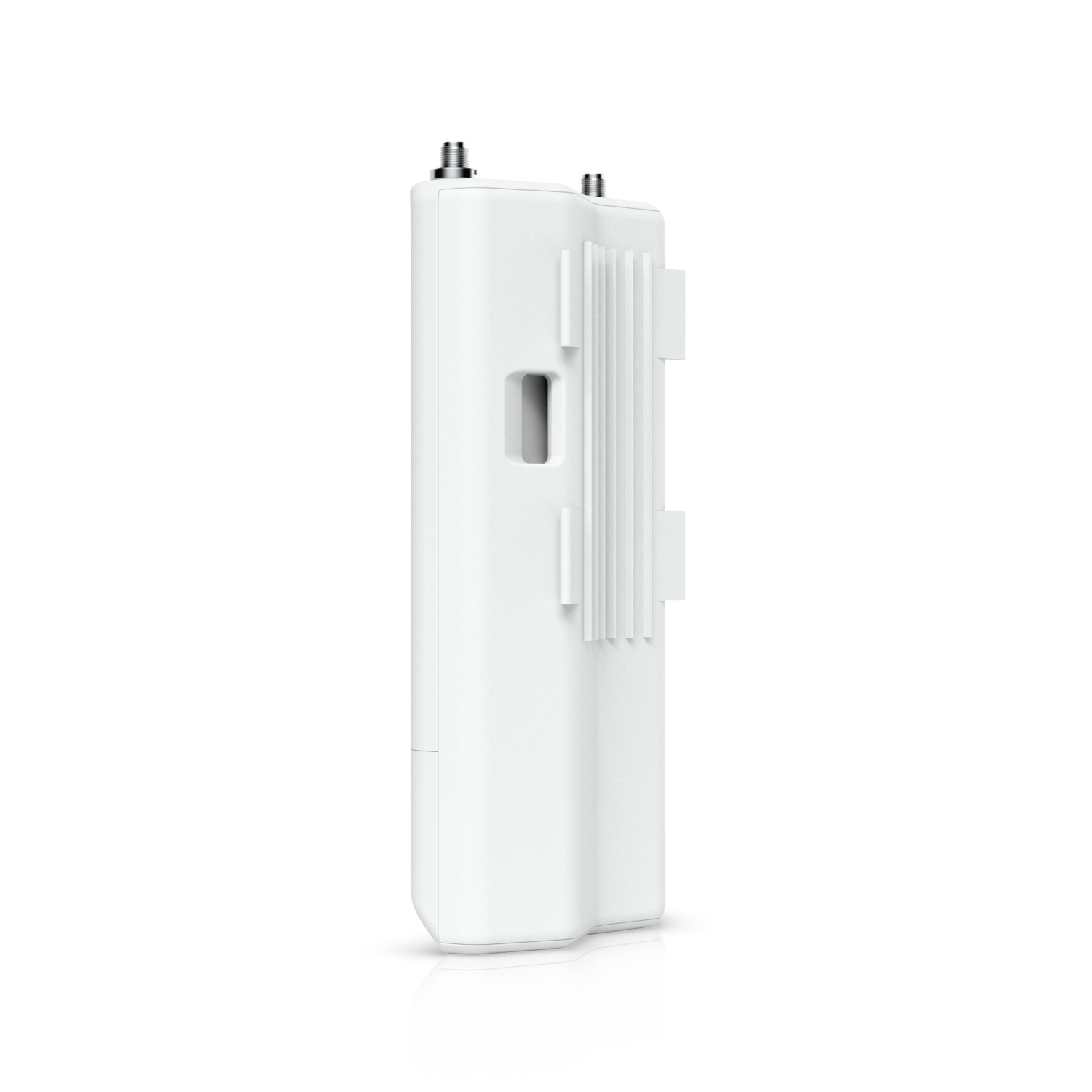

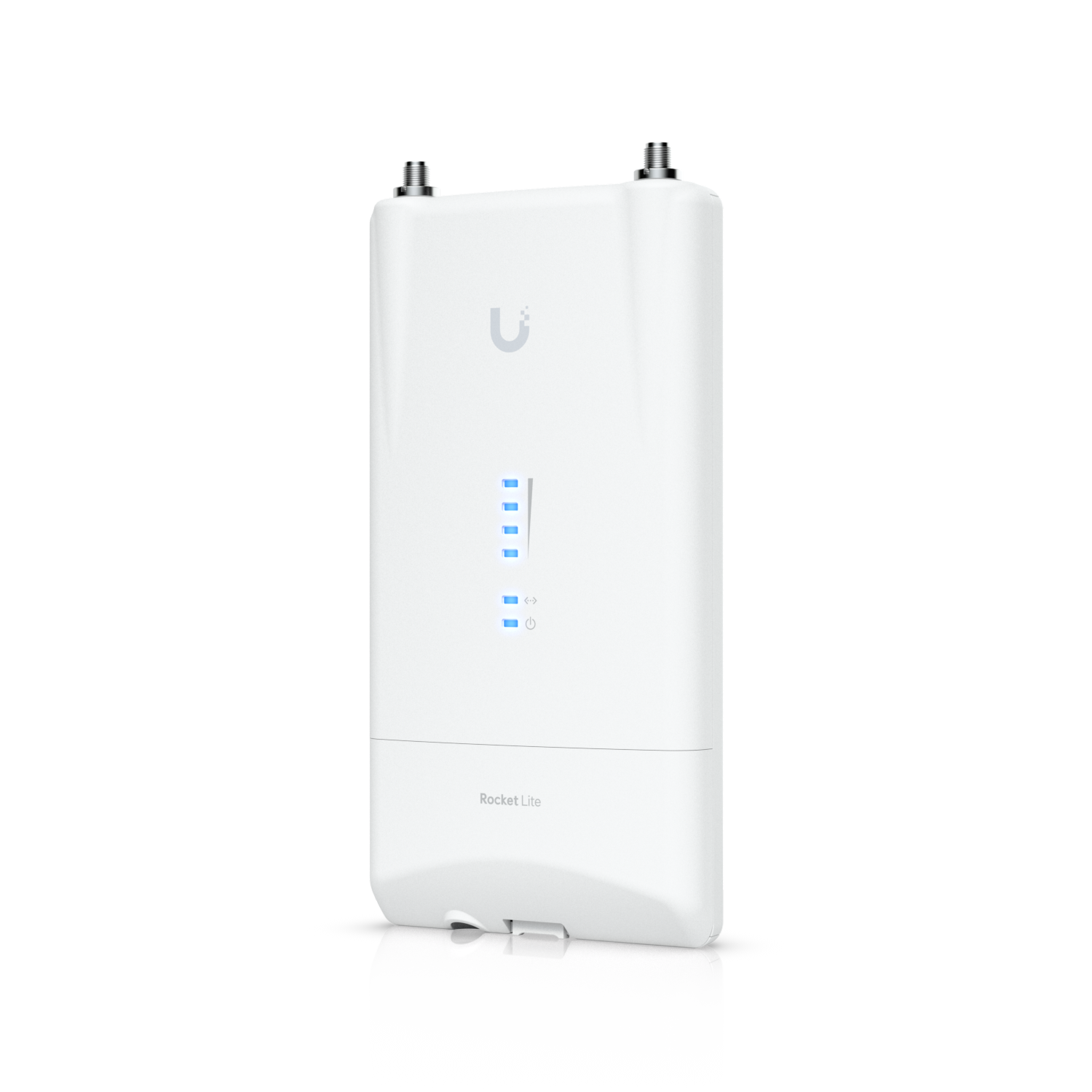

Ubiquiti Rocket 5AC Lite R5AC-LITE airMAX ac Radio

5 GHz airMAX ac radio with Gigabit Ethernet and two RP-SMA connectors for an external antenna. Powered by 24V passive PoE, with access-point and station modes.

Key specifications

• Model: R5AC-LITE
• Device type: Wireless radio
• Technology: airMAX ac
• Frequency bands: 5 GHz
• Network ports: 1 × GbE RJ45
• Network port count: 1
• Port speed: 1 Gbps
• Antenna connectors: 2 × weatherproof RP-SMA
• PoE: 24V passive PoE input
• Power method: 24V passive PoE, 20–27V DC input range
• Power adapter: 24V, 0.5A Gigabit PoE adapter included
• Maximum power consumption: 8.5 W
• Operating modes: Access point / station
• Dimensions: 162 × 84 × 37 mm
• Weight: 250 g
• Operating temperature: −40…+80 °C
• Warranty: 12 months

An antenna connects through the RP-SMA connectors. Permitted frequencies and transmit power depend on regional regulations.
