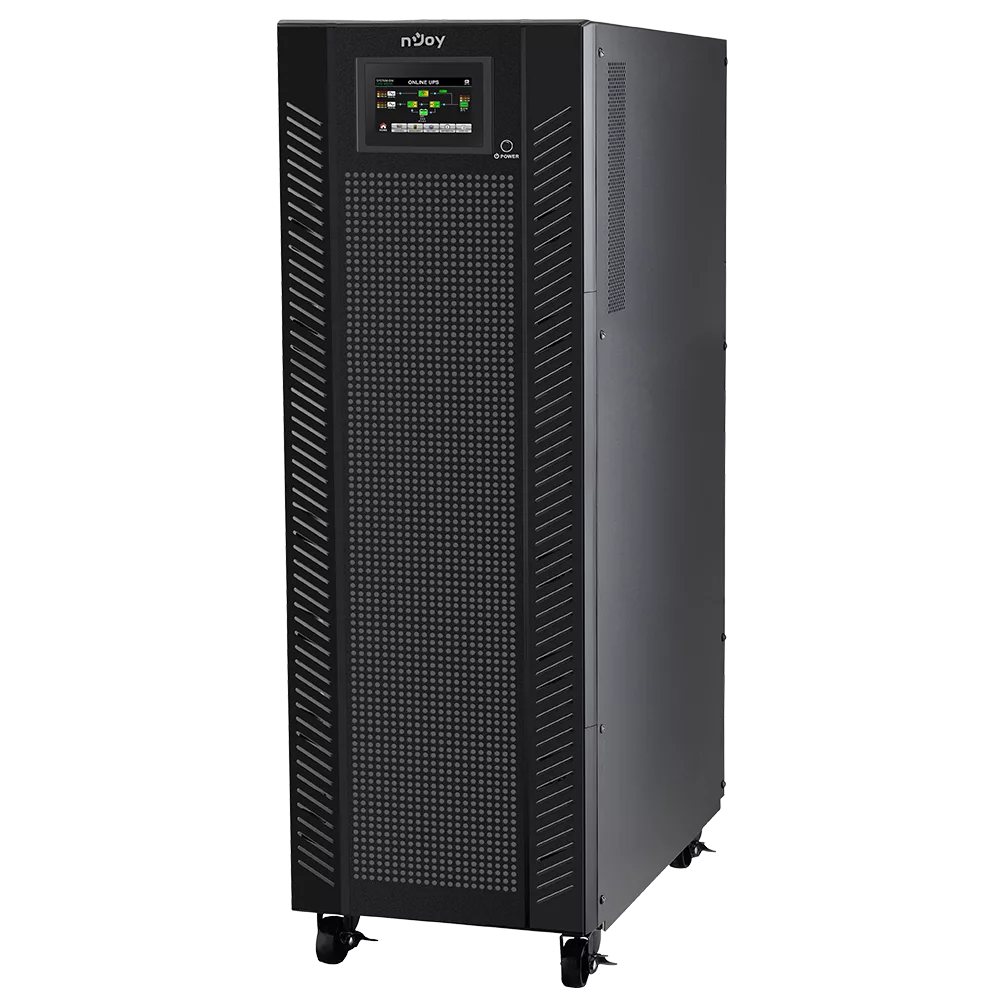

nJoy Garun 40KL UP33TOP140KGAAZ01B — front angle

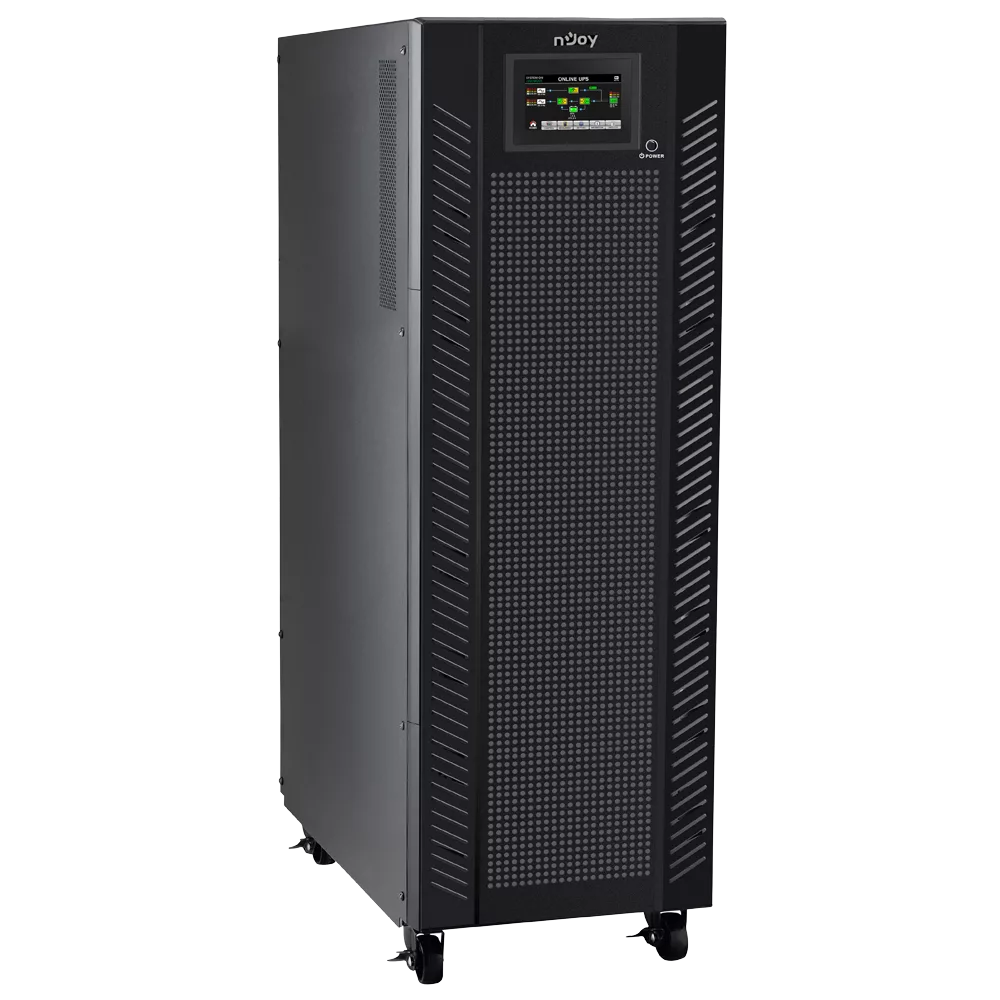

nJoy Garun 40KL UP33TOP140KGAAZ01B — opposite front angle

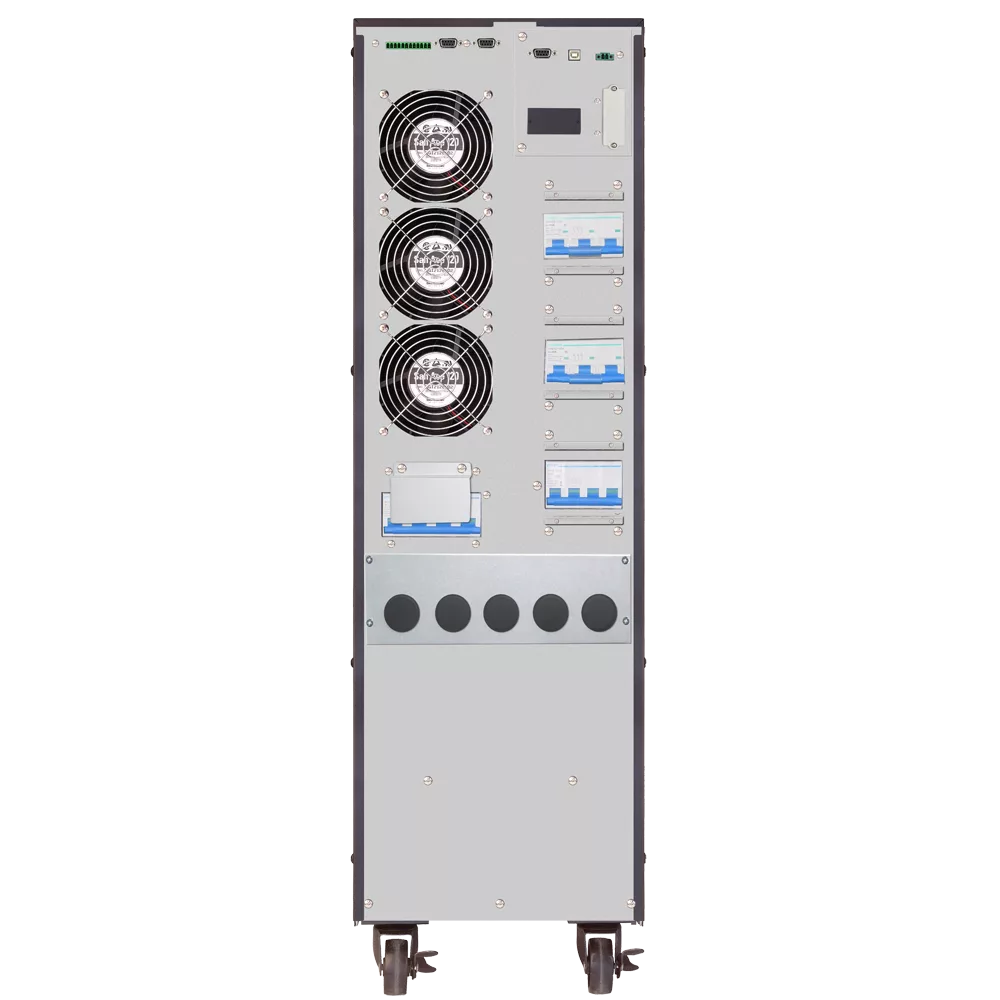

nJoy Garun 40KL UP33TOP140KGAAZ01B — rear view
nJoy

nJoy Garun 40KL — 40000 VA / 40000 W UPS

SKU: UP33TOP140KGAAZ01BAvailability: Available on backorder

Request price
Apparent power
40000 VA
Active power
40000 W
Topology
On-line
Batteries
Not included
Waveform
Pure Sine Wave
Description
Online double-conversion UPS, 40000 VA / 40000 W, with pure sine wave output. Three-phase input and output (3:3). Batteries are not included. Available to order; price on request. Warranty: 2 years.

nJoy Garun 40KL is an online double-conversion UPS (VFI) rated at 40000 VA (40 kVA) / 40000 W, with a 1.0 output power factor and pure sine wave output. Manufacturer part number: UP33TOP140KGAAZ01B. Tower form factor. Three-phase input and three-phase output (3:3).

Nominal input voltage: 3 × 400 V AC (3Ph+N). Output: 3 × 380/400/415 V AC (3Ph+N). At 3 × 360 V output, power is derated to 90% of nominal. Hardwired power connections through terminal blocks.

Batteries are not included: there are no factory-preinstalled batteries. Supports internal installation of up to 80 batteries rated at 12 V / 7 Ah or 12 V / 9 Ah, as well as external battery cabinets. Batteries and external cabinets are selected and ordered separately. Actual runtime depends on the selected batteries and load.

Interfaces: RS-232, USB and EPO. Intelligent slot for an optional SNMP or Modbus card; cards are not included. 4.3″ LCD touchscreen, maintenance bypass and ECO mode. Dimensions (L × W × H): 815 × 300 × 1000 mm. Weight without batteries: 96 kg. Available to order; price on request. Warranty: 2 years.

SKUUP33TOP140KGAAZ01B
BrandnJoy
ModelGarun 40KL
TopologyOn-line
Apparent power40000 VA
Active power40000 W
Input voltage3 × 400 V AC (3Ph+N)
Output voltage3 × 380/400/415 V AC (3Ph+N)
WaveformPure Sine Wave
BatteriesNot included
InterfacesEPO, RS232, USB
Form factorTower
