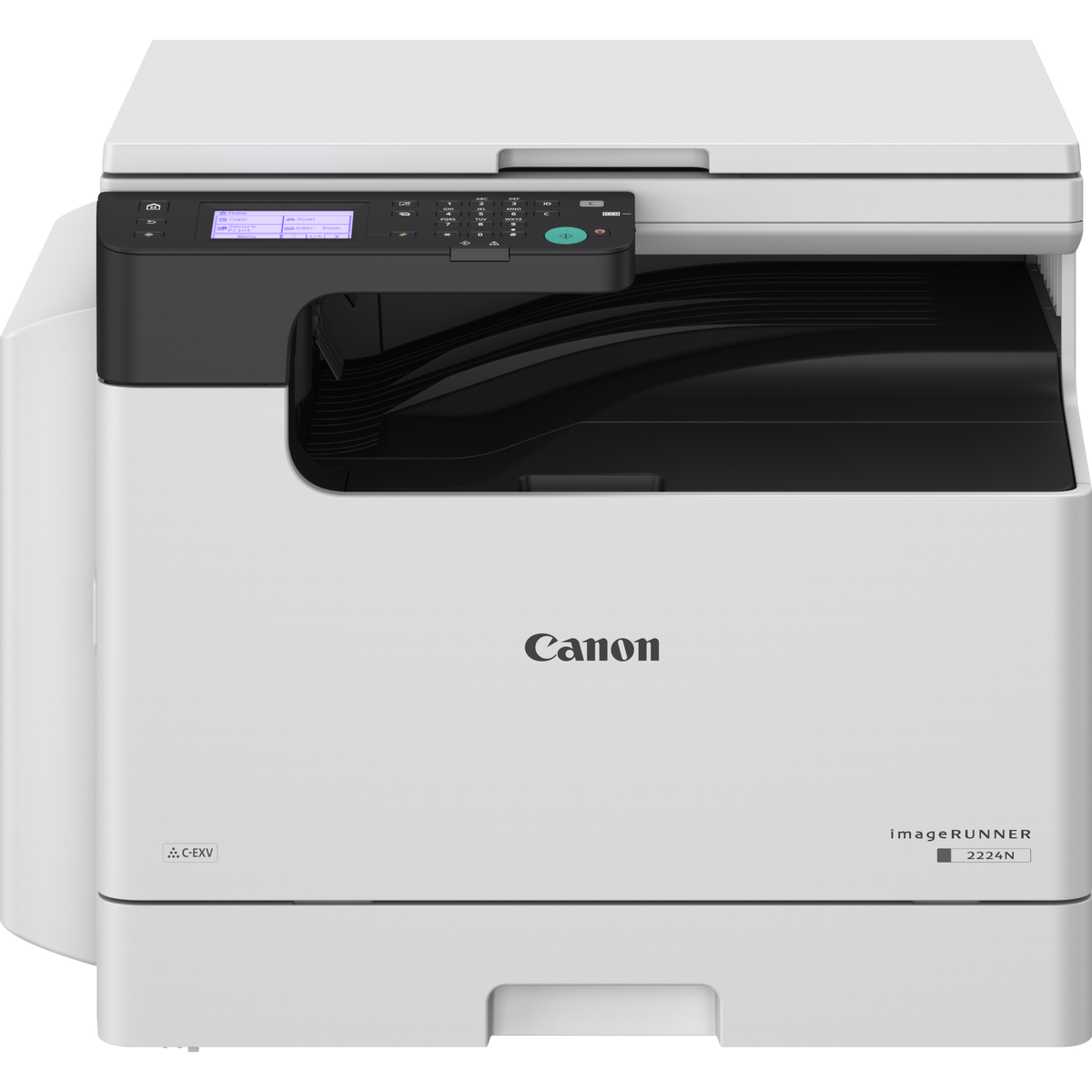

Canon imageRUNNER 2224N (5941C002) Mono Laser MFP

Canon imageRUNNER 2224N is a monochrome A3 laser MFP for small and medium offices. It prints, copies and scans, and its network connection lets several users share it.

Printing and connectivity

It prints up to 24 pages per minute in A4 and up to 12 pages per minute in A3. The first copy comes out in about 7.4 seconds, and the device is ready within 13 seconds of power-on. Standard paper capacity is 350 sheets (a 250-sheet cassette and a 100-sheet multi-purpose tray), expandable to 600 sheets with the optional Cassette Feeding Module-AK1. Connect by wired Ethernet, Wi-Fi or USB. Scans can be sent to email or an SMB network folder. AirPrint, Mopria, Canon PRINT Business and Microsoft Universal Print are supported.

Security features include Secure Print, Department ID login, TLS 1.3, IPsec, IEEE 802.1X and Verify System at Start-Up.

Key specifications

• Functions: Print, copy, scan, send scans (email, SMB)
• Printing: Monochrome laser, up to A3
• Speed: Up to 24 ppm (A4), up to 12 ppm (A3)
• First copy: About 7.4 seconds
• Print resolution: Up to 1200 × 1200 dpi
• Duplex printing: With optional Duplex Unit-E1
• Scanner: Platen up to 297 × 432 mm, optional 50-sheet DADF-AY2 with two-sided scanning
• Paper capacity: 350 sheets, up to 600 sheets maximum
• Output capacity: 250 sheets
• Processor / memory: 1.6 GHz dual-core, 1 GB RAM, 2 GB eMMC
• Display: 3.5-inch (8.9 cm) monochrome touch panel
• Connectivity: USB 2.0, Ethernet 10/100, Wi-Fi 802.11b/g/n
• Print languages: UFR II, PCL 6 / PCL 5
• Toner: Canon C-EXV42 (approx. 10,200 A4 pages at 5% coverage)
• Dimensions (W × D × H): 627 × 589 × 502 mm (with platen cover)
• Weight: Approx. 31.6 kg (without toner)

In the box

The main unit is supplied. The Duplex Unit-E1 for two-sided printing is not included; the DADF-AY2 document feeder, extra cassette and pedestal are sold separately.

Important details

The device has no fax function. Automatic duplex printing requires the Duplex Unit-E1, and multipage or two-sided scanning requires the DADF-AY2. The network port is 10/100 Mbps. It needs a 220–240 V supply, with maximum power consumption of about 1,500 W.
