ATOP AP-ST2 SFP to RJ45 Copper Ethernet Transceiver

The ATOP AP-ST2 is an SFP to RJ45 copper Ethernet transceiver for links up to 100 m. Operation at 10/100/1000 Mb/s requires a suitable SGMII host. Ordinary SERDES operation supports 1000BASE-T only. Available to order; price on request.

Key specifications

• Model: AP-ST2
• Form factor: SFP
• Connector: RJ45
• Link speed: 10/100/1000 Mb/s with a suitable SGMII host
• Ordinary SERDES interface: 1000BASE-T only
• Cable: Category 5, unshielded copper twisted pair
• Reach: Up to 100 m
• Replacement: Hot-pluggable
• Operating case temperature: 0–70 °C

Please note

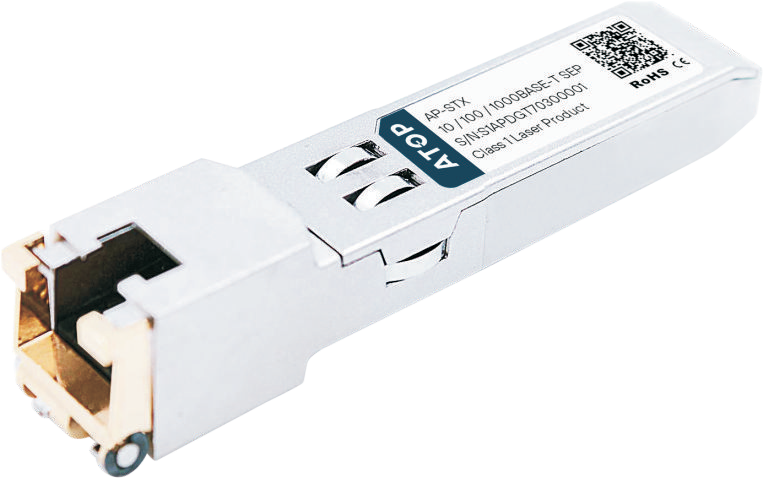

Before ordering, check your exact device model, SFP port support and SGMII interface support. The manufacturer representative product image comes from the family datasheet, which explicitly lists this exact SKU. The pictured label identifies the product family.
