The Ubiquiti UniFi USW-16-PoE brings wired connections and power for compatible PoE devices into one managed switch. Connect access points, IP cameras and other network devices while keeping their combined PoE demand within the 42 W budget. The fanless design avoids fan noise in nearby workspaces.
Key specifications

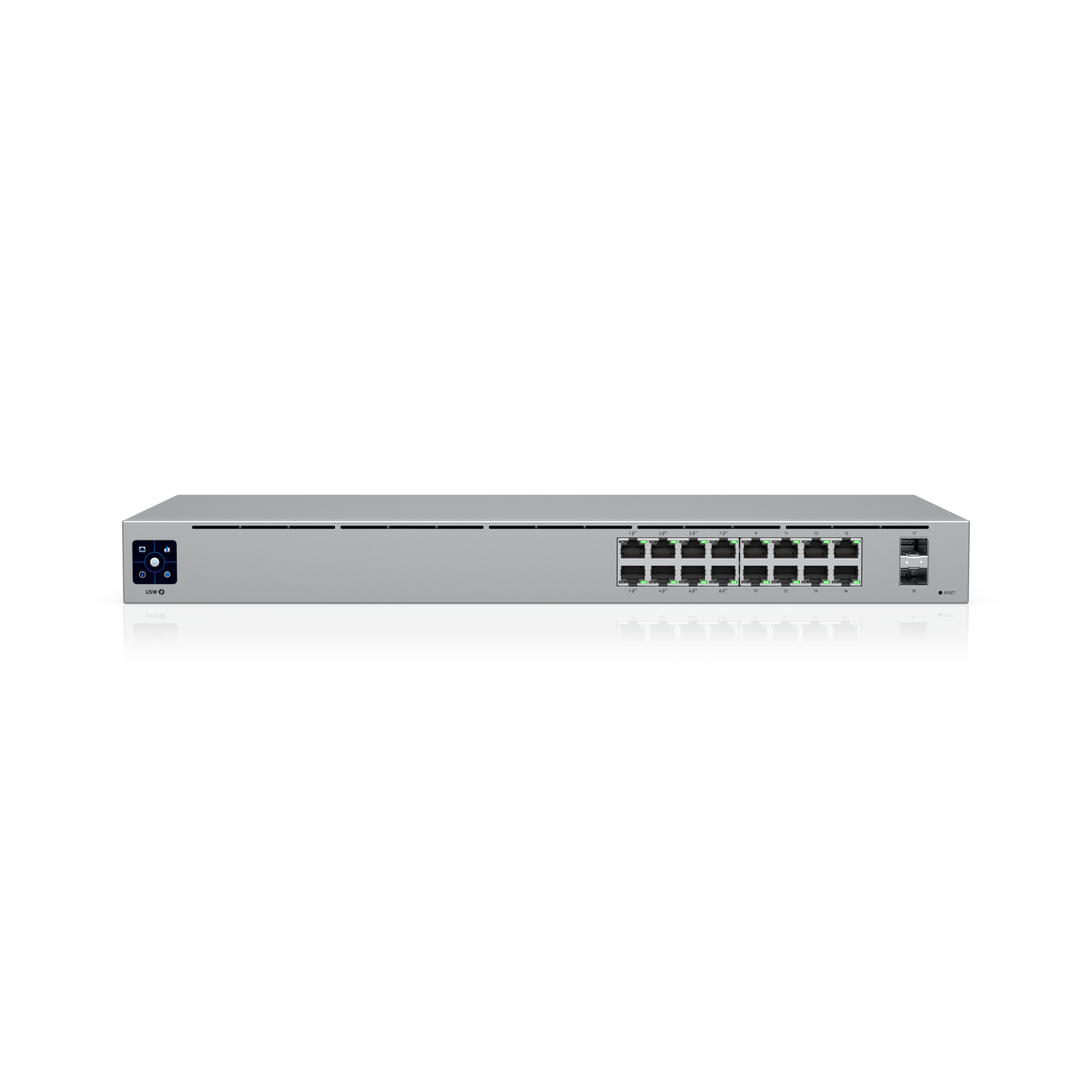

- 16 × 10/100/1000 Mbps RJ45 ports, including 8 with PoE+ support.
- 2 × 1 Gbps SFP ports for links to other network segments.
- Total available PoE budget: 42 W.
- 36 Gbps switching capacity and 18 Gbps non-blocking throughput.
- 1.3-inch touchscreen.
- 1U rack-mount design; dimensions: 442 × 200 × 44 mm.
- Internal power supply with 100–240 V AC, 50/60 Hz input.
Management and compatibility
Managed through UniFi Network version 7.2.94 or later. Check the compatibility and combined power requirements of your PoE devices: all eight PoE+ ports share the 42 W budget. For SFP links, choose modules compatible with the 1G ports and the equipment at the other end.
Warranty: 12 months.
