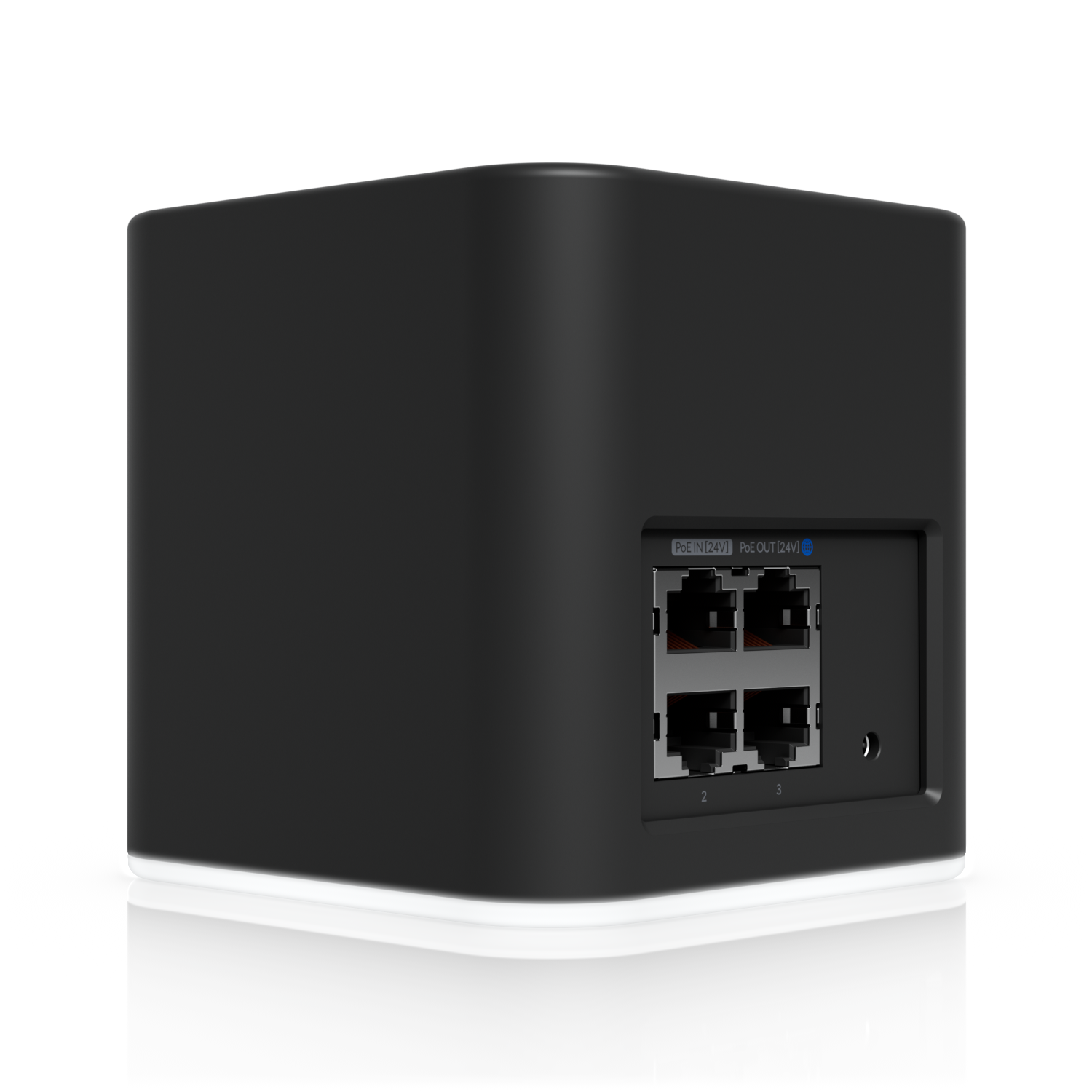

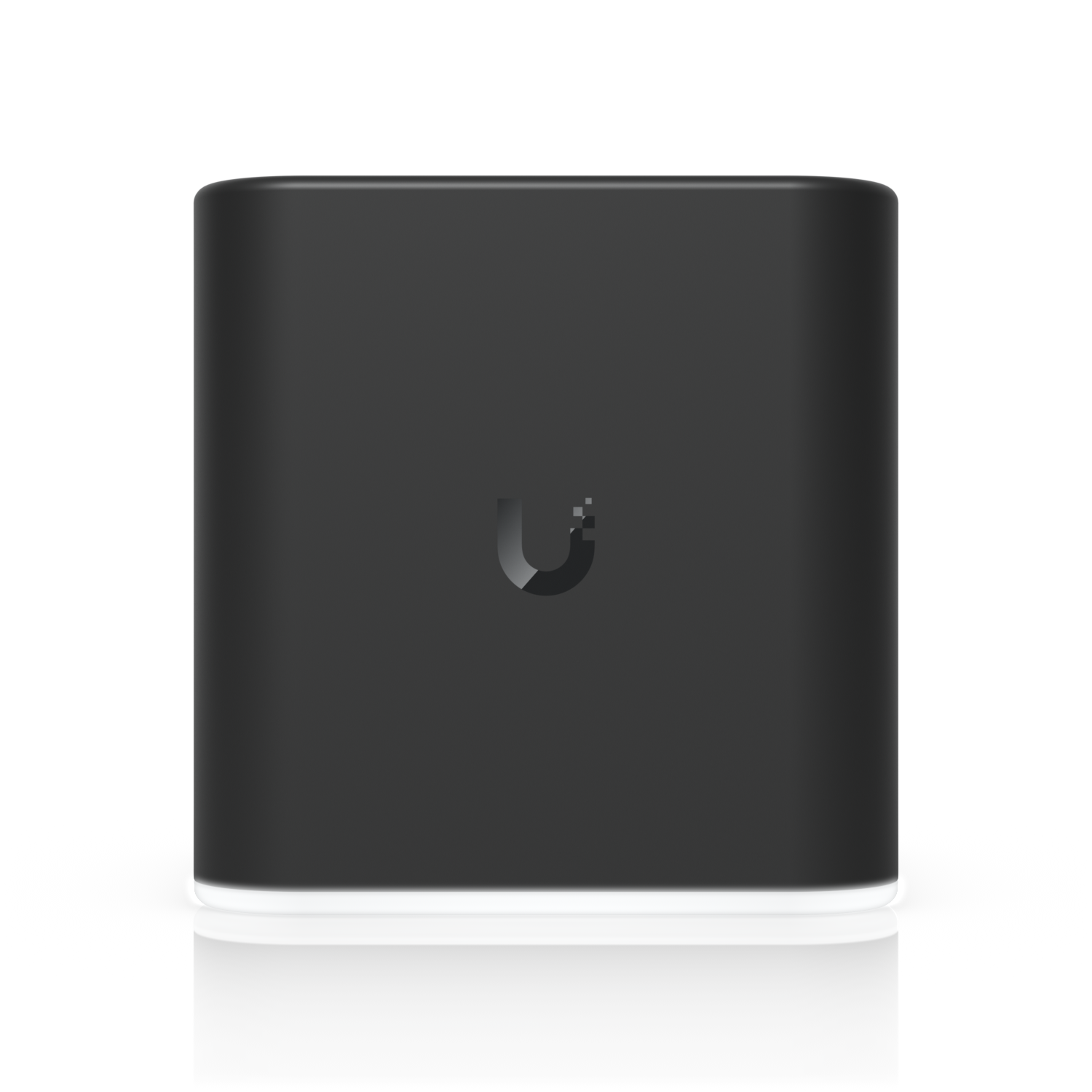

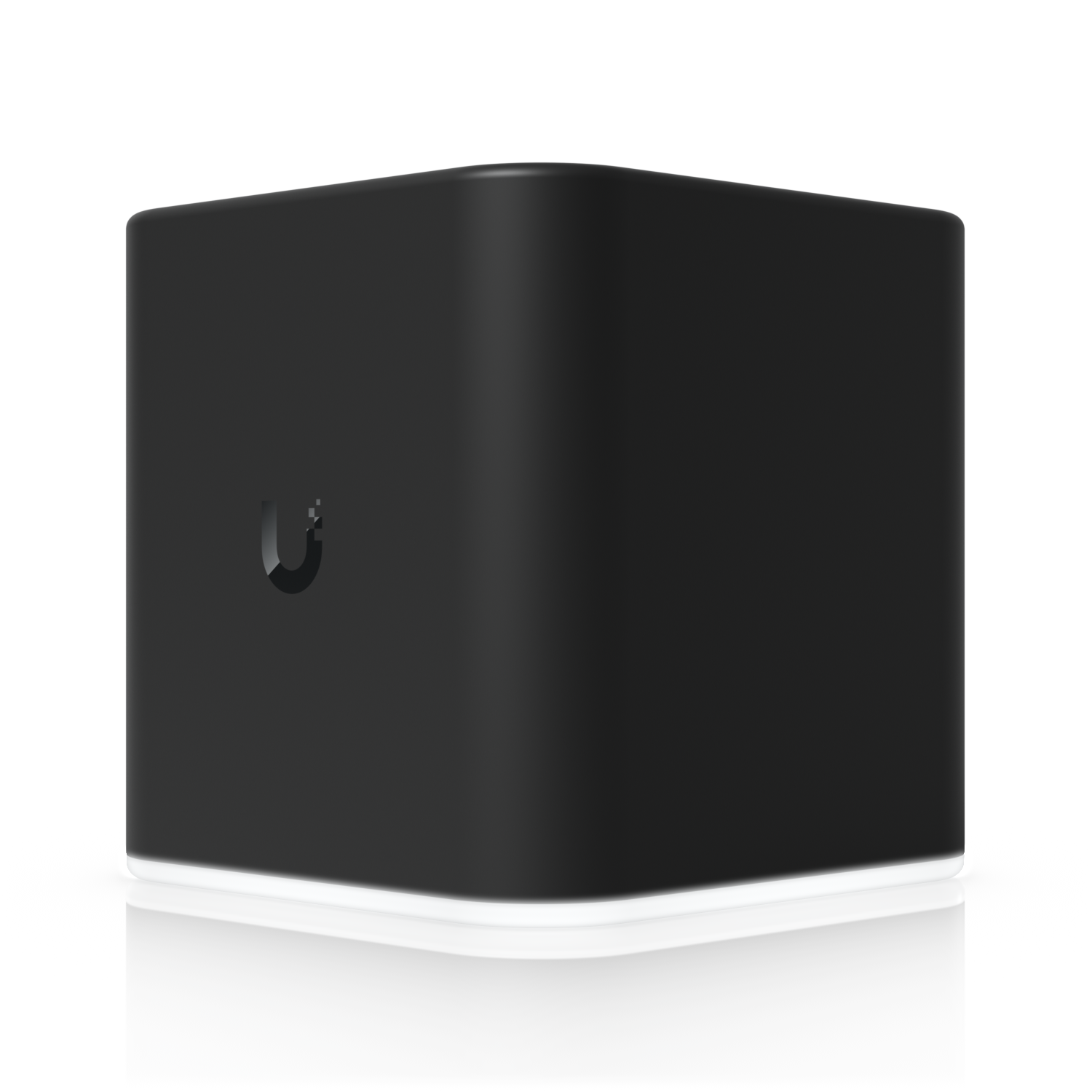

Compact dual-band 802.11ac access point with four Gigabit Ethernet ports. Supports 24V passive PoE input and powers a compatible airMAX device through its WAN port.
Key specifications
- Model: ACB-AC
- Device type: Access Point
- Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Frequency bands: 2.4 / 5 GHz
- Maximum wireless data rate: 2.4 GHz: up to 300 Mbps; 5 GHz: up to 866.7 Mbps
- MIMO: 2 × 2
- Network ports: 4 × Gigabit Ethernet RJ45 total
- Network port count: 4
- Port speed: 1 Gbps
- PoE: 24V passive PoE input on LAN 1; 24V PoE output on WAN
- Power method: 24V DC, 0.83A adapter or 24V passive PoE
- Maximum power consumption: 8.5 W
- Management: UISP, web interface; Ethernet / Wi-Fi
- Antenna gain: 2.4 GHz: 4 dBi; 5 GHz: 5 dBi
- Dimensions: 87.8 × 89.5 × 89.25 mm
- Weight: 280 g
- Operating temperature: −10…+50 °C
- Warranty: 12 months
The PoE output is intended for compatible 24V airMAX devices. PoE passthrough requires the manufacturer power adapter or a 24V, 1A PoE input. Wireless rates are theoretical and depend on link conditions.
