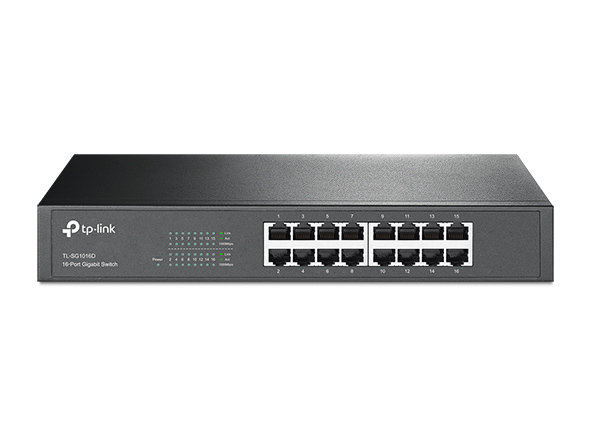

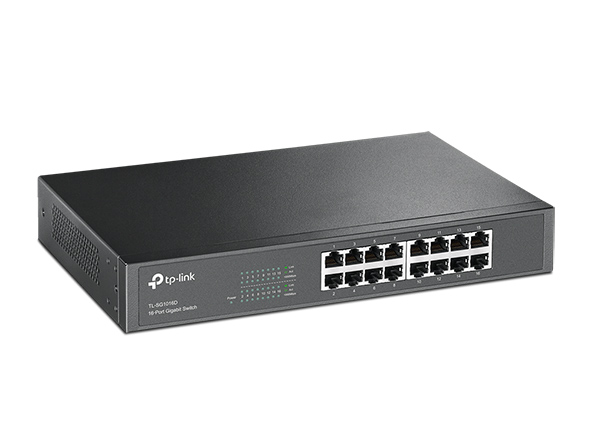

TP-Link TL-SG1016D 16-port Gigabit switch

TP-Link TL-SG1016D is a Gigabit switch for expanding a wired network, with 16 RJ45 ports. Connect the power supply and network cables to begin using it without software configuration.

The ports negotiate link speed automatically, and Auto MDI/MDIX removes the need to select a special crossover cable. IEEE 802.3x flow control supports data transfer, while the fanless design suits placement near a workspace.

Key specifications

• Model: TP-Link TL-SG1016D
• Device type: Network switch
• Ports and connectors: 16 × RJ45
• Network port count: 16
• Port speed: RJ45: 10/100/1000 Mbps
• Management: Unmanaged, no software configuration required
• Mounting: Desktop or rack
• Link configuration: Auto-negotiation, Auto MDI/MDIX
• Switching capacity: 32 Gbps
• Cooling: Fanless
• Flow control: IEEE 802.3x

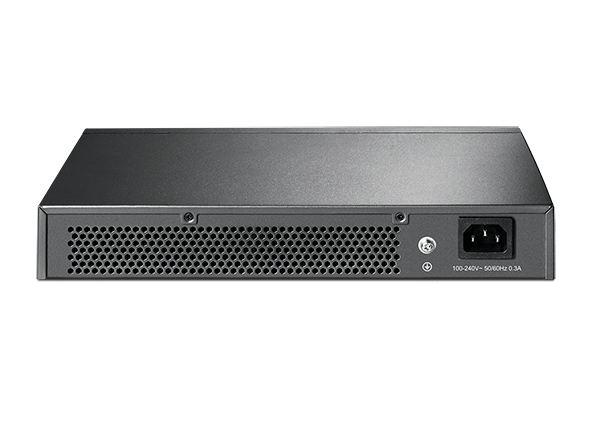

• Power supply: Internal power supply, 100–240 V AC, 50/60 Hz
• PoE power output: Not supported
• Warranty: 6 months

Official TP-Link specifications
