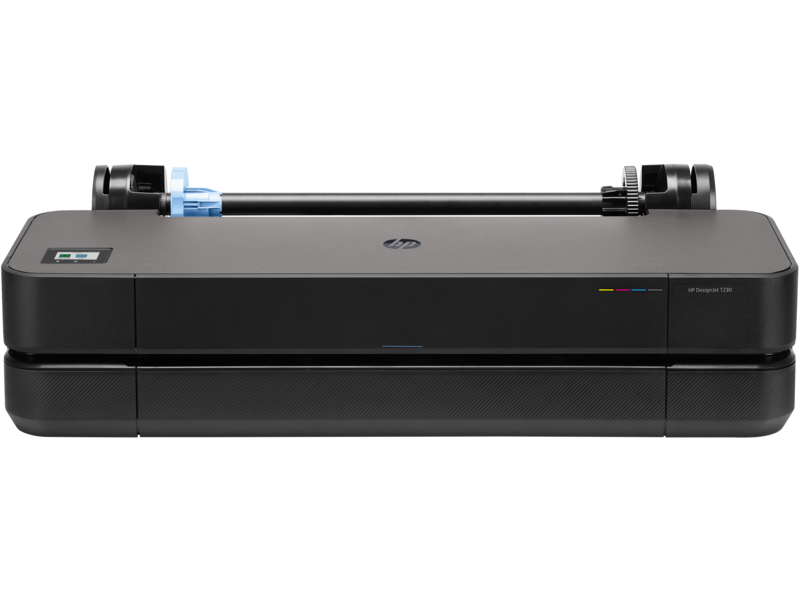

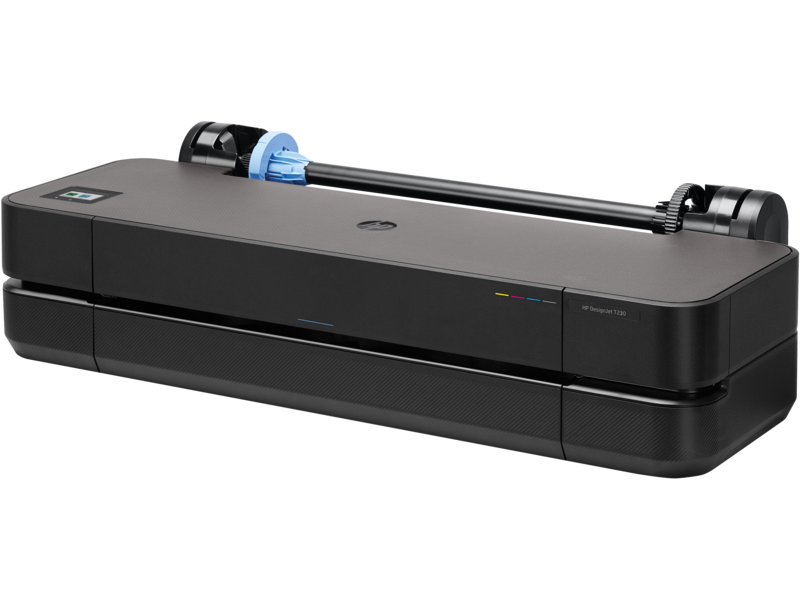

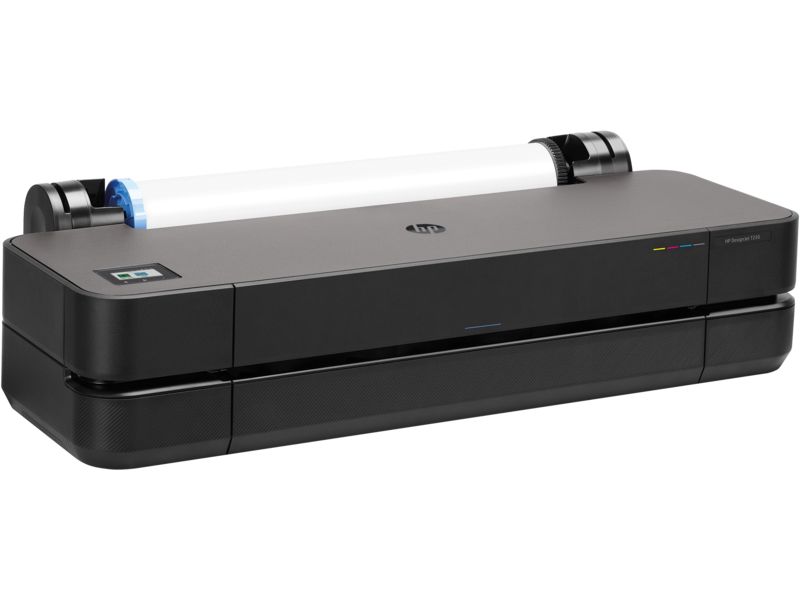

HP DesignJet T230 24-inch (5HB07D) large-format inkjet printer

HP DesignJet T230 24-inch handles drawings, plans and color presentations in A1 / 24-inch / 610 mm format, with wired and wireless connectivity.

Key specifications

• Model: HP DesignJet T230 24-inch
• Print technology: HP Thermal Inkjet
• Functions: Print
• Paper format: A1 / 24-inch / 610 mm
• Color printing: Yes
• Print speed: 35 seconds/A1; up to 68 A1/hour
• Maximum print resolution: 2400 × 1200 optimized dpi
• Interfaces: Gigabit Ethernet; USB 2.0; Wi-Fi 802.11a/b/g/n; Wi-Fi Direct
• Built-in Wi-Fi: Yes
• Memory: 512 MB
• Dimensions (W × D × H): 1013 × 440 × 285 mm
• Weight: 21.5 kg
• Ink system: 4 cartridges: pigment black; dye cyan/magenta/yellow
• Roll width: 279–610 mm
• Maximum roll diameter: 100 mm
• Maximum roll weight: 4.1 kg
• Media weight: 60–280 g/m²
• Maximum media thickness: 0.3 mm
• Media handling: Sheet, roll, automatic horizontal cutter
• Line accuracy: ±0.1%

Official manufacturer specifications
