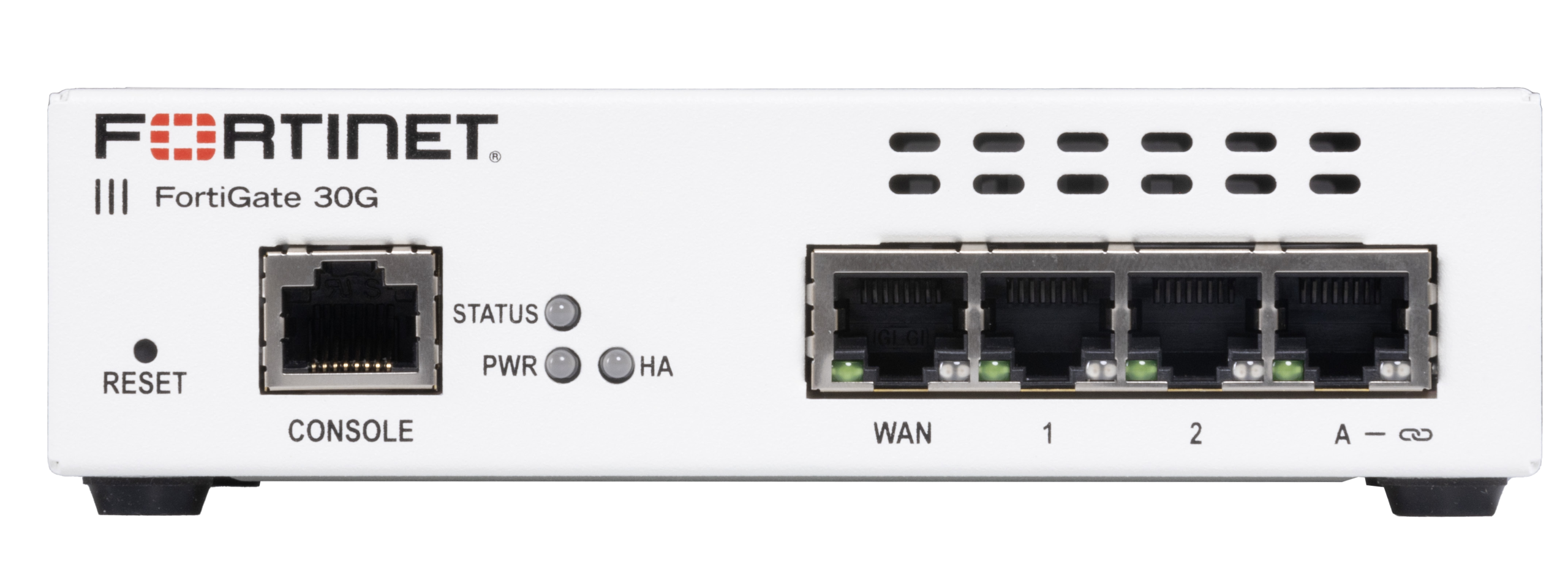

Fortinet FortiGate 30G (FG-30G) is a desktop next-generation firewall and Secure SD-WAN appliance running FortiOS. Its wired Gigabit Ethernet interfaces suit office and branch network protection.
Key specifications
- Manufacturer SKU: FG-30G
- Form factor: Desktop
- OS: FortiOS
- Network interfaces: 4 × GE RJ45: 1 WAN, 2 LAN, 1 FortiLink (default assignment)
- USB ports: 0
- RJ45 console ports: 1
- Onboard storage: Not built in
- Wi-Fi: Not built in
- PoE output: Not built in
- Dimensions (H × W × D): 40.5 × 142 × 160 mm
- Weight: 0.6 kg
- Power consumption (average / maximum): 6.8 / 8.2 W
Performance and test conditions
- Firewall throughput (1518 / 512 / 64-byte UDP packets): Up to 4 / 4 / 3.9 Gbps
- IPS throughput (Enterprise Traffic Mix): Up to 0.8 Gbps
- NGFW throughput (Enterprise Traffic Mix): Up to 0.57 Gbps
- Threat Protection throughput (Enterprise Traffic Mix): Up to 0.5 Gbps
- IPsec VPN throughput (512-byte packets, AES256-SHA256): Up to 3.5 Gbps
All performance figures are manufacturer “up to” values and vary with system configuration. IPS, NGFW and Threat Protection use the Enterprise Traffic Mix with logging enabled. NGFW is measured with Firewall, IPS and Application Control enabled; Threat Protection additionally enables Malware Protection. Firewall packet sizes correspond to the three values in the listed order. IPsec VPN uses 512-byte packets and AES256-SHA256.
The current manufacturer specification does not list SSL VPN support for this model.
This listing identifies the base hardware SKU. FortiCare/FortiGuard subscriptions and their duration are not specified and must be confirmed in the quotation.
Price and supply are available on request. Contact Tectronis to confirm the configuration, availability and delivery terms.
