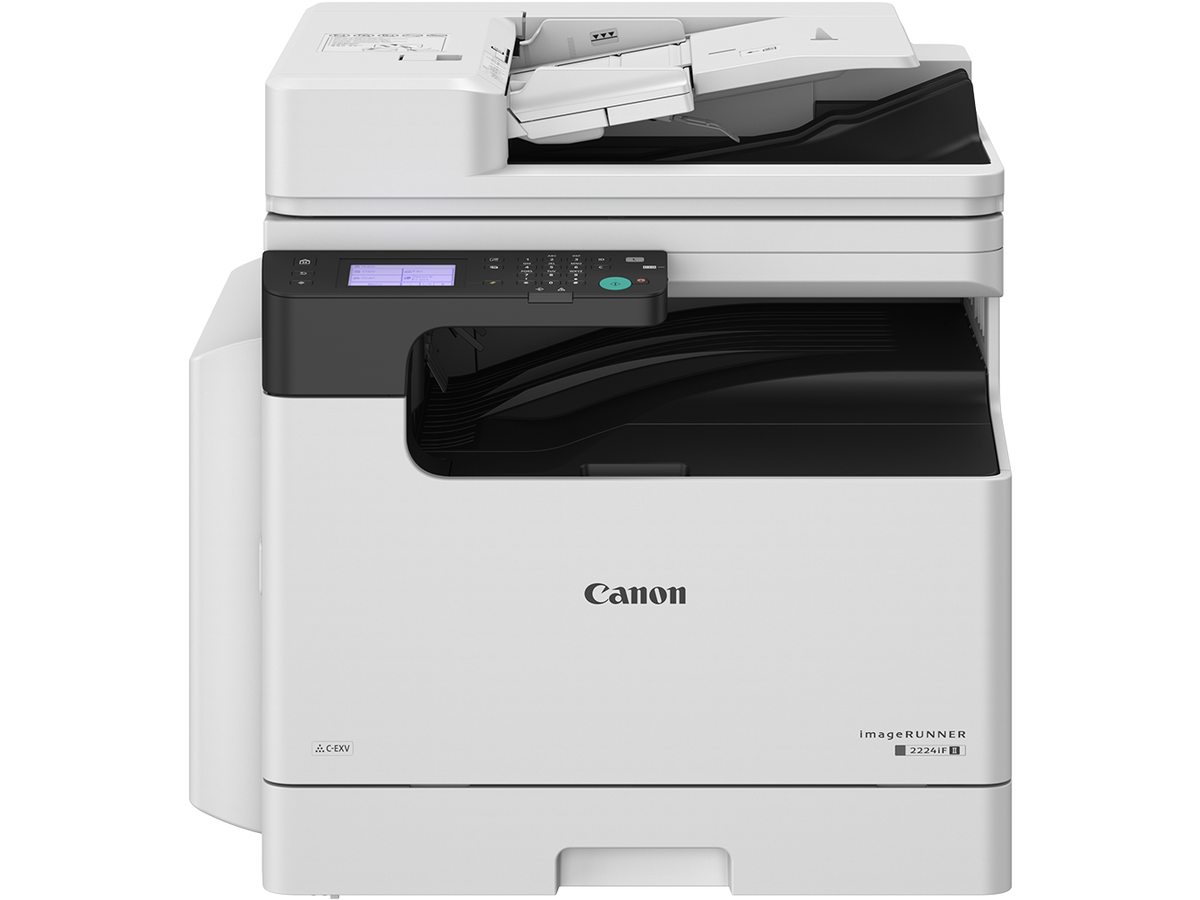

Canon imageRUNNER 2224 II (7080C001) Mono Laser MFP

Canon imageRUNNER 2224 II is a desktop monochrome laser MFP that handles paper up to A3. It combines printing, copying and scanning in one device. This is the base model of the series, with a flatbed scanner and platen cover and a USB connection.

Printing and connectivity

It prints and copies up to 24 pages per minute in A4 and up to 12 pages per minute in A3. The first copy comes out in about 7.4 seconds, and the device is ready within 13 seconds of power-on. Standard paper capacity is 350 sheets, expandable to 600 sheets with the optional Cassette Feeding Unit-AM1. The multi-purpose tray takes 60–157 gsm paper and envelopes.

The device connects to a computer via USB 2.0. UFR II and PCL drivers are available for Windows, and UFR II for macOS. Copy features include ID card and passport copy, N-on-1, book to two pages and 25–400% zoom. It is operated from a 3.5-inch monochrome touch panel. Department ID login, SecurePrint and a software integrity check at start-up are supported.

Key specifications

• Functions: Print, copy, scan
• Printing: Monochrome laser, up to A3
• Speed: Up to 24 ppm (A4), 12 ppm (A3)
• First copy: About 7.4 seconds
• Resolution: Print up to 1200 × 1200 dpi, copy 600 × 600 dpi
• Duplex printing: No automatic duplex
• Scanner: Flatbed with platen cover, originals up to 297 × 432 mm (A3)
• Paper capacity: 350 sheets, up to 600 sheets with optional cassette
• Output tray: 250 sheets
• Paper weight: Cassette 64–90 gsm, multi-purpose tray 60–157 gsm
• Processor / memory: 1.2 GHz / 1.5 GB RAM
• Display: 3.5-inch (8.9 cm) monochrome touch panel
• Connectivity: USB 2.0
• Toner: Canon C-EXV 42 (approx. 10,200 A4 pages at 5% coverage)
• Dimensions (W × D × H): 627 × 589 × 518 mm
• Weight: Approx. 30.8 kg including toner

In the box

This is the base configuration: flatbed scanner with platen cover, no document feeder (DADF), no extra cassette and no pedestal. According to supplier data, the device ships with a C-EXV 42 toner cartridge, a power cable and documentation.

Important details

The only connection is USB; there is no network port or Wi-Fi. There is no automatic duplex printing and no document feeder, so multipage documents are scanned and copied one page at a time from the glass. The cassette takes 64–90 gsm paper; heavier paper and envelopes go through the multi-purpose tray. The device weighs about 30.8 kg and needs roughly 1065 × 1285 mm of floor or desk space. The Plain Pedestal Type-J2 and the extra cassette are sold separately.
